Description

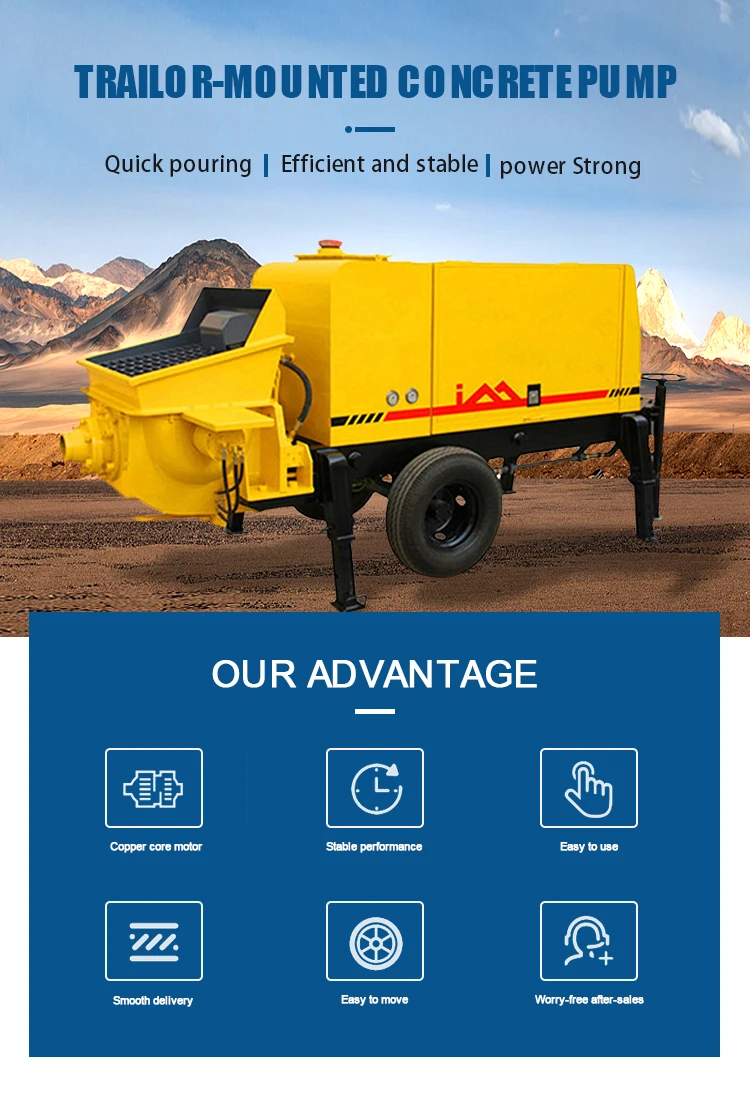

2022 small trailer mounted fine stone concrete pumps
Specification
|
Model
|
YG-10
|
YG-20
|
YG-30
|
YG-40
|
|
Motor engine power
|
15KW
|
22KW
|
37KW
|
45KW
|
|
Work efficiency
|
6m3/h
|
12M3/h
|
15-18m3/h
|
20-22m3/h
|
|
Greatest pressure
|
15Mpa
|
18Mpa
|
26Mpa
|
28Mpa
|
|
Work pressure
|
10Mpa
|
15Mpa
|
20Mpa
|
20Mpa
|
|
Aggregate size
|
0.5-1.5cm
|
0.5-2cm
|
≤20mm
|
≤30mm
|
|
Vertical conveying distance
|
30m
|
40m
|
80m
|
140m
|
|
Horizontal conveying distance
|
50m
|
80m
|
160m
|
280m
|
|
Conveyor pipe diameter
|
80mm
|
80mm
|
100mm
|
120mm
|
|
Weight
|
600KG
|
1600KG
|
2200KG
|
2400KG
|
|
Shape size
|
180x70x110cm
|
340x120x160cm
|
380x150x160cm
|
400X150X155cm
|
